軸  承

型  號

Bearing number

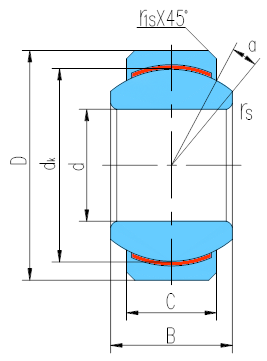

外 形 尺 寸

Dimensions 　　　　　　 mm/inch

額定載荷

Load ratings  kN

重 量

Weight

≈kg

d

D

B

C

dk

rs

min

r1s

min

α?

≈

動載荷

Dynamic

靜載荷

Static

GEFZ4C

4.83

14.29

7.14

5.54

10.31

0.3

0.38

11

5.1

12.8

0.006

0.19

0.5625

0.281

0.218

0.406

0.012

0.015

GEFZ6C

6.35

16.67

8.71

6.35

12.70

0.3

0.56

13

7.2

18.4

0.010

0.25

0.6562

0.343

0.25

0.5

0.012

0.022

GEFZ7C

7.94

19.05

9.53

7.14

14.27

0.3

0.81

11

9.1

22.9

0.014

0.3125

0.75

0.375

0.281

0.562

0.012

0.032

GEFZ9C

9.53

20.64

10.31

7.92

16.66

0.3

0.81

9

11.8

29.6

0.018

0.375

0.8125

0.406

0.312

0.656

0.012

0.032

GEFZ11C

11.11

23.02

11.10

8.71

17.45

0.3

0.81

9

13.6

34.1

0.021

0.4375

0.9062

0.437

0.343

0.687

0.012

0.032

GEFZ12C

12.70

25.40

12.70

9.91

20.65

0.3

0.81

9

18.4

46

0.029

0.5

1

0.5

0.39

0.813

0.012

0.032

GEFZ14C

14.29

27.78

14.27

11.10

23.01

0.3

0.81

9

23

57.4

0.042

0.5625

1.0937

0.562

0.437

0.906

0.012

0.032

GEFZ15C

15.88

30.16

15.88

12.70

25.40

0.3

0.81

8

29

72.5

0.053

0.625

1.1875

0.625

0.5

1

0.012

0.032

GEFZ19C

19.05

36.51

19.05

15.06

30.15

0.3

1.12

9

40.8

102.1

0.094

0.75

1.4375

0.75

0.593

1.187

0.012

0.044

GEFZ22C

22.23

39.69

22.23

17.86

33.32

0.6

1.12

9

53.5

133.8

0.119

0.875

1.5625

0.875

0.703

1.312

0.024

0.044

GEFZ25C

25.40

44.45

25.40

20.24

38.10

0.6

1.12

9

69.4

173.5

0.173

1

1.75

1

0.797

1.5

0.024

0.044
